HY-SRF05 5Pin Ultrasonic Distance Sensor

$145.00

Category:

Description

Ultrasonic sensors overcome many of the weaknesses of IR sensors – they provide distance measurement regardless of color and lighting of obstacles.

They also provide lower minimum distances and wider angles of detection to gaurantee that obstacles are not missed by a narrow sensor beam.

Specifications:

  • Trigger Pin Format: 10 uS digital pulse
  • Sound Frequency: 40 kHz
  • Echo Pin Output: 0-Vcc
  • Echo Pin Format: output is DIGITAL and directly proportional with range. See our conversion formula above.
  • Measurement Range: 2cm to ~4.5m
  • Measurement Resolution: 0.3cm
  • Measurement Angle: up to 15 deg
  • Measurement Rate: 40 Hz
  • Supply Voltage: 4.5V to 5.5V
  • Supply Current: 10 to 40mA
  • Connector: standard 5-pin male connector which can plug directly into breadboards.

IMG_0454

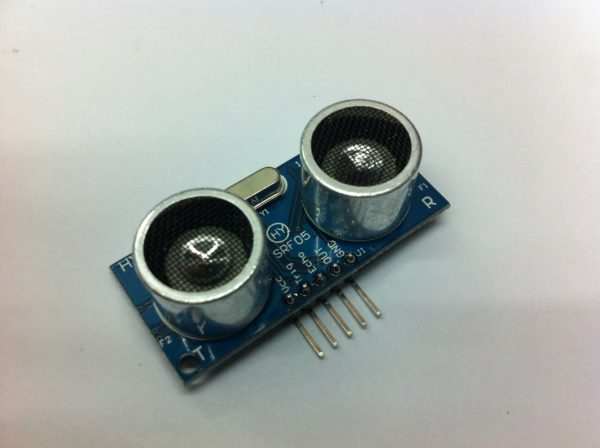

IMG_0283

IMG_0284
