SIM900 GSM GPRS Shield Arduino (with SIM card holder)

$1,780.00

Category:

Description

    • The GPRS Shield is based on SIM900 module from SIMCOM and compatible with Arduino and its clones.
    • The GPRS Shield provides you a way to communicate using the GSM cell phone network.
    • The shield allows you to achieve SMS, MMS, GPRS and Audio via UART by sending AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands).
    • The shield also has the 12 GPIOs, 2 PWMs and an ADC of the SIM900 module(They are all 2V8 logic) present onboard.
    • Quad-Band 850 / 900/ 1800 / 1900 MHz – would work on GSM networks in all countries across the world.
    • GPRS multi-slot class 10/8
    • GPRS mobile station class B
    • Compliant to GSM phase 2/2+
    • Class 4 (2 W @ 850 / 900 MHz)
    • Class 1 (1 W @ 1800 / 1900MHz)
    • Control via AT commands – Standard Commands: GSM 07.07 & 07.05 |
      Enhanced Commands: SIMCOM AT Commands.
    • Short Message Service – so that you can send small amounts of data over the network

      (ASCII or raw hexadecimal).

    • Embedded TCP/UDP stack – allows you to upload data to a web server.
    • RTC supported.
    • Selectable serial port.
    • Speaker and Headphone jacks
    • Low power consumption – 1.5mA(sleep mode)
    • Industrial Temperature Range – -40°C to +85 °C
    • Size:approx. 75mm*55mm*10mm

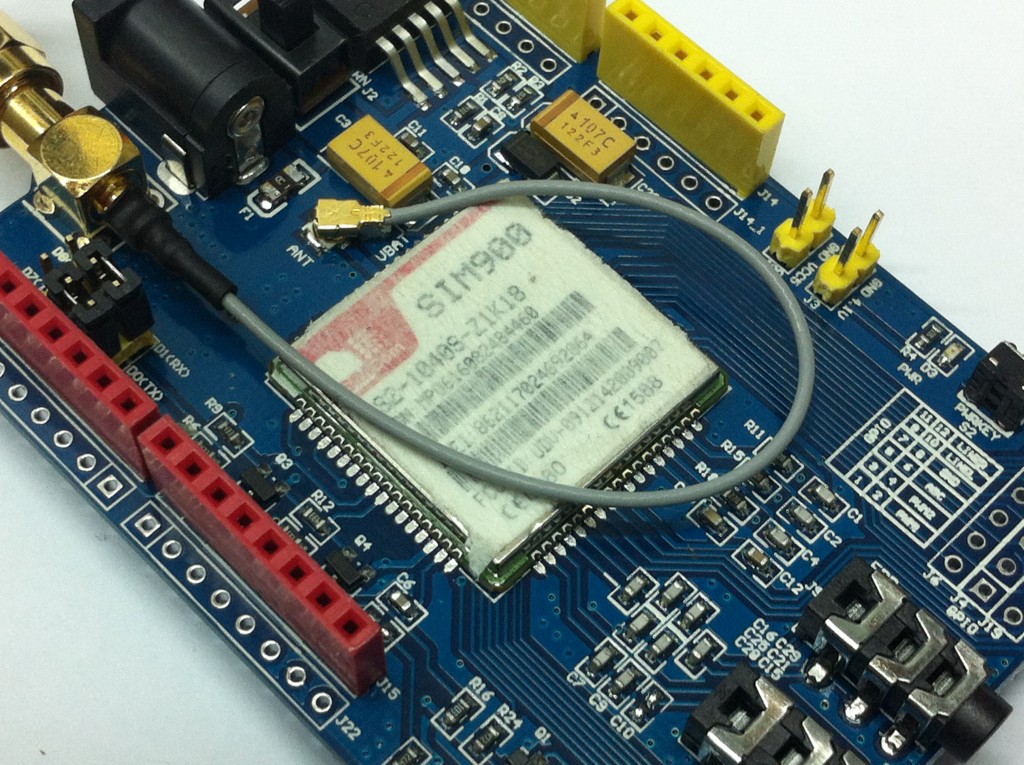

IMG_0239 IMG_0235 IMG_0233

IMG_0240
