Genuino Mega 2560

$2,245.00

Category:

Description

f1810db29b19a46cf7ab17baf90255ab.image.538x354

Overview
Don’t limit your projects, think big, think MEGA! Genuino Mega 2560 has been designed with bigger and more ambitious projects in mind. The large number of analog and digital pins, together with a larger memory makes it ideal for devices like 3D printers and other demanding applications. Backward compatibility with existing shields and sketches is provided, but other shields target the Mega specifically, exploiting the full potential of this board.

Technology
The Mega 2560 is a board based on the 8-bit AVR microcontroller ATmega2560 by Atmel. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports). It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable. The Mega 2560 board is compatible with most shields designed for the Uno. To compare this board to the current, past or outdated boards see the Comparison Page.

MEGAtab

Genuino Mega and Arduino Mega share the same components, characteristics and quality of manufacturing. They are actually the same board under a different brand. Depending on the area of the world where you live you’ll be able to purchase an Arduino Mega or a Genuino Mega. Learn more.

Documentation
Genuino Mega 2560 is open-source hardware! These are the relevant files:
SchematicsReference DesignBoard size



Technical specifications

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54
PWM Digital I/O Pins 14
Analog Input Pins 16
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB
Flash Memory for Bootloader 8 KB
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz

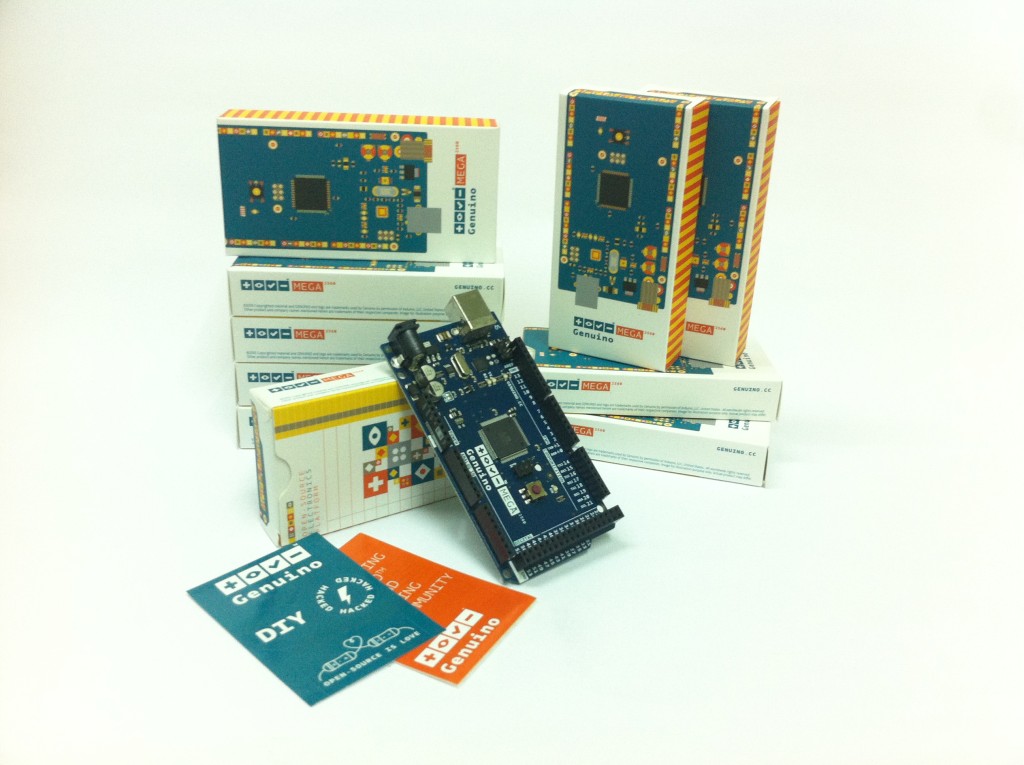

IMG_0892 IMG_0887 IMG_0942
