RC522 Card Read Antenna RFID Module

$250.00

Category:

Description

RC522 module uses Philips MFRC522 original chip design circuit card reader, easy to use, low cost, suitable for equipment development, the development of advanced applications reader users, the need for RF card terminal design / production users. This module uses voltage of 3.3V, simple few lines through the SPI interface directly with any user CPU board.

  • Module Name: MF522-ED
  • Working current:13—26mA/ DC 3.3V
  • Standby current:10-13mA/DC 3.3V
  • Sleeping current:<80uA
  • Peak current:<30mA
  • Working frequency:13.56MHz
  • Card reading distance :0~60mm(mifare1 card)
  • Protocol:SPI
  • Data communication speed:Maximum 10Mbit/s
  • Card types supported:mifare1 S50、mifare1 S70、mifare UltraLight、mifare Pro、mifare Desfire
  • Dimension:40mm×60mm
  • Environment
  • Working temperature:-20—80 degree
  • Storage temperature:-40—85 degree
  • Humidity:relevant humidity 5%—95%
  • Max SPI speed: 10Mbit/s

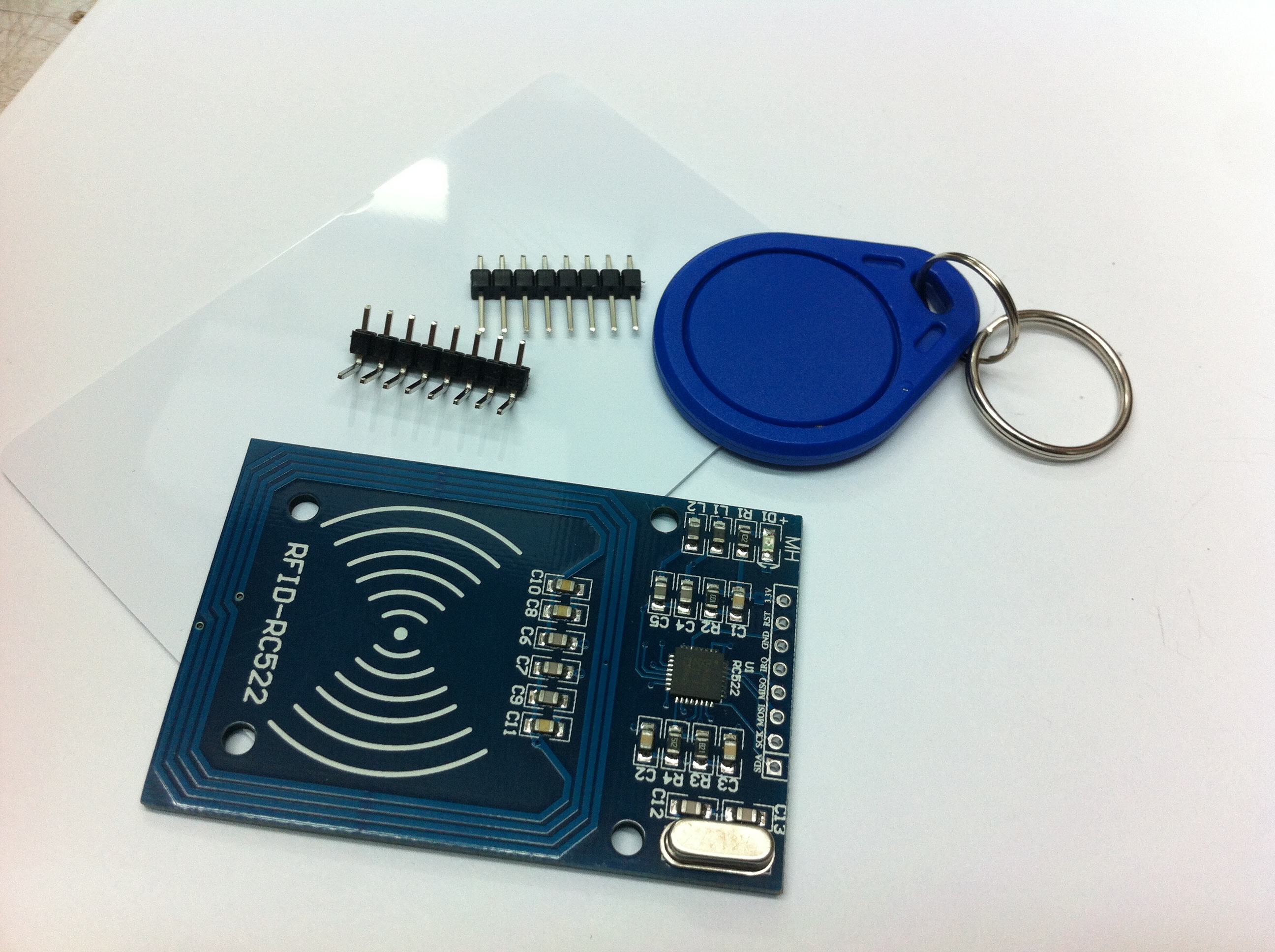

Packaging:

  • 1 x RFID-RC522 Module
  • 1 x Standard empty RC522 Card
  • 1 x RC522 Key
  • 1 x Break away pin straight
  • 1 x Break away pin 90 degree

IMG_0398

IMG_0397

IMG_0396

IMG_0395
