Genuino 101

Call for pricing

3-5 days lead time

Category:

Description

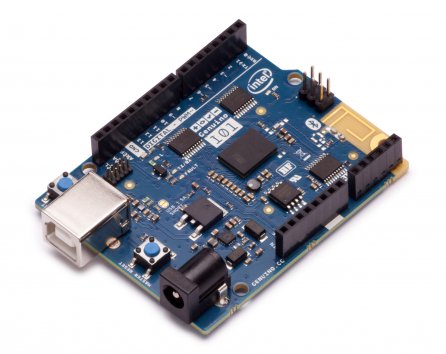

17933631181c33c8e7a071ddc6a228d3.image.446x354

Overview
Genuino 101 delivers the performance and low-power consumption of the Intel® Curie™ processor with the simplicity of Genuino, all at an entry-level price. It includes onboard Bluetooth LE capabilities, perfect for communicating with smart phones and computers. The built-in six-axis accelerometer / gyroscope enables a variety of motion sensing applications. If you are familiar with the Uno, the Genuino 101 is a logical next step that adds exciting possibilities. If you’re new to Genuino, the 101 is a great board to start with.

Technology
Genuino 101 uses the Curie module that contains two tiny cores, an x86 (Quark) and a 32-bit ARC architecture core, both clocked at 32MHz. The Intel toolchain compiles your Genuino sketches optimally across both cores to accomplish the most demanding tasks. The 101 comes with 14 digital input/output pins (of which 4 can be used as PWM outputs), 6 analog inputs, a USB connector for serial communication and sketch upload, a power jack, an ICSP header with SPI signals and I2C dedicated pins. Specific libraries support the Inertial Monitoring Unit (IMU) and the Bluetooth Low Energy chip, protocol and profiles. The board operating voltage and I/O is 3.3V but all pins are protected against 5V overvoltage. Some aspects about the Curie cores are still under development and this will bring new functionalities in the near future. To compare this board to the current, past or outdated boards see the Comparison Page.



101tab

Genuino 101 and Arduino 101 share the same components, characteristics and quality of manufacturing. They are actually the same board under a different brand. Depending on the area of the world where you live you’ll be able to purchase an Arduino 101 or a Genuino 101. Learn more.

Documentation
Genuino 101 is open-source hardware! These are the relevant files:
SchematicsReference Design

If you want more information about programming the Genuino 101 or how to interface hardware with it, please go to the Product Page. Genuino 101 is programmed, as all the other Genuino boards with the Software (IDE)that you can download for free, with the addition of the Intel Curie core to download with Board Manager. To find inspiration for what you can do with the Genuino 101, please visit the Genuino.cc Getting started Page, check out some Tutorials, and take part in the community the lively discussions on the Forum.

Technical specifications

Microcontroller Intel Curie
Operating Voltage 3.3V (5V tolerant I/O)
Input Voltage (recommended) 7-12V
Input Voltage (limit) 7-20V
Digital I/O Pins 14 (of which 4 provide PWM output)
PWM Digital I/O Pins 4
Analog Input Pins 6
DC Current per I/O Pin 4 mA
Flash Memory for Bootloader 196 kB
SRAM 24 kB
Clock Speed 32MHz
Features Bluetooth LE, 6-axis accelerometer/gyro
Length 68.6 mm
Width 53.4 mm
