VGA CMOS Camera Module Lens SCCB with I2C Interface




OV7670 Image Sensor, providing single-chip VGA camera and image processor for all functions.

Products VGA images up to 30 frames / sec. Users can fully control the image quality, data formats and transmission.


● High sensitivity suitable for illumination applications

● Low voltage suitable for embedded applications

● Standard SCCB interface compatible with I2C interface

● RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format

● Supports VGA, CIF, and from a variety of sizes CIF to 40×30

● VarioPixel sub-sampling mode

● Auto affect the control features include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination light stripes, automatic black level calibration image quality controls including color saturation, hue, gamma, sharpness ANTI_BLOOM

● ISP has a compensation function to eliminate noise and dead pixels

● Support for image scaling

● compensation for loss of optical lens

● 50/60Hz automatic detection

● Saturation automatically adjust (UV adjustment)

● Automatically adjust edge enhancement

● Noise Reduction automatically adjust


●  Photosensitive array: 640X480

●  IO Voltage: 2.5V to 3.0V (internal LDO for nuclear power 1.8V)

●  Power operation: 60mW/15fpsVGAYUV

●  Sleep: <20μA

●  Temperature Operating: -30 ℃ to 70 ℃

●  Stable: 0 ℃ to 50 ℃

●  Output Formats (8)? YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data

●  Optical size: 1/6 “

●  FOV: 25 °

●  Maximum Zhen rate: 30fps VGA

●  Sensitivity: 1.3V / (Lux-sec)

●  SNR: 46 dB

●  Dynamic range: 52 dB

●  View Mode: Progressive

●  Electronic Exposure: 1 line to 510 line

●  Pixel Size: 3.6μm x 3.6μm

●  Dark current: 12 mV / s at 60 ℃

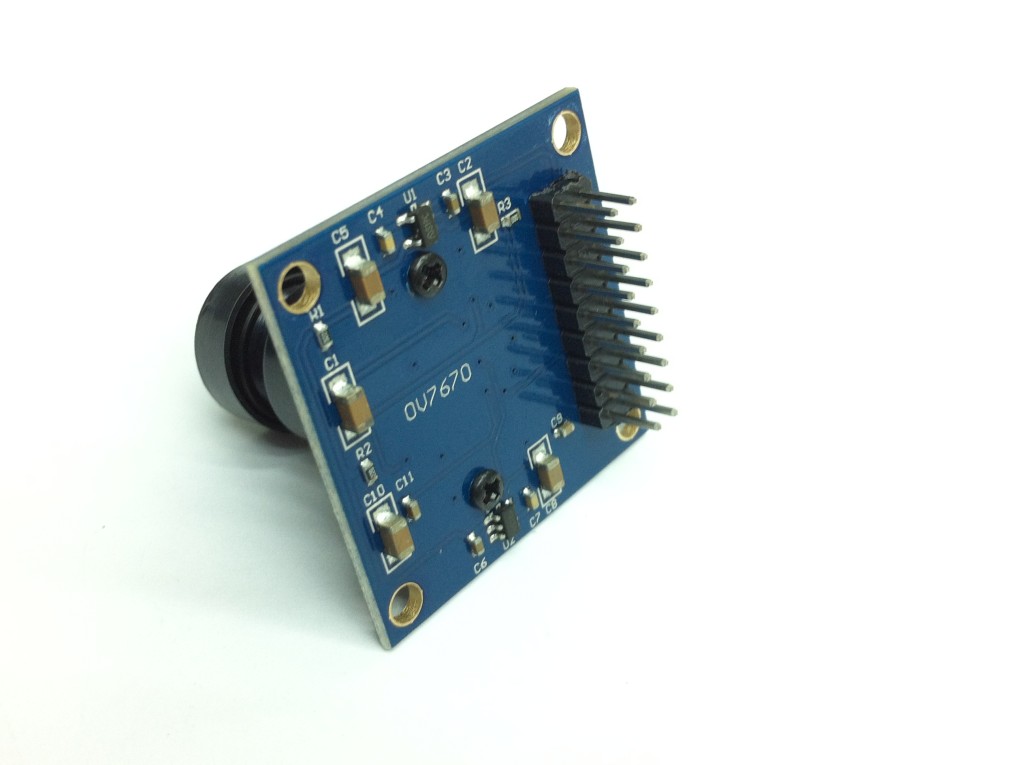

IMG_0578 IMG_0577 IMG_0580 IMG_0579
