WTV020-SD-16P U-Disk Audio Player SD Card Voice Module



Product characteristics

  • The product supports plug-maximum the 1G capacity of the SD card
  • Supports playback of 4Bit ADPCM format files
  • Automatically recognize the voice files
  • Loadable 6KHz to 32KHz, 36KHz sampling rate AD4 audio
  • Loadable 6KHz ~ 16KHz sampling rate WAV audio
  • 16bitDAC and PWM audio output
  • Can store up to 512 voice
  • WTV020-SD-20S, WTV020-SD-16P two module types
  • Support micro-processor and key control
  • Voice playback can call any paragraph
  • Power-down save operation data capabilities
  • Loaded voice without software assistance to the SD card can be placed directly on the voice
  • Support file combination play, including mute combination
  • Operating voltage: DC2.5 ~ 3.6V
  • Quiescent Current: 16uA (SD card is not inserted)


Product overview

  • WTV020-SD module is a voice Rewritable content type of mass storage voice module, pluggable maximum capacity of 1GB SD card memory. Can load WAV format voice, and AD4 formats voice. WTV020-SD module voice chip WTV020SD-20S master core, with MP3 control mode, the key one-to-one control mode (3 voice with the voice two), the power-loop control mode as well as the second-line serial control mode. The control mode is set in the chip of the sample preparation, can not be switched during the operation of the various control modes, such as the need to use what mode control, Division I to build.



  • WTV020-SD module can be used in automotive electronics applications like anti-theft alarm, parking sensor, GPS navigation systems, electronic dog, central locking, and also for smart home system, home burglar alarm, medical instruments, the human voice prompts, music player, home, intelligent transportation devices (toll stations, car parks), communication, industrial control areas (elevators, industrial equipment), and other fields.

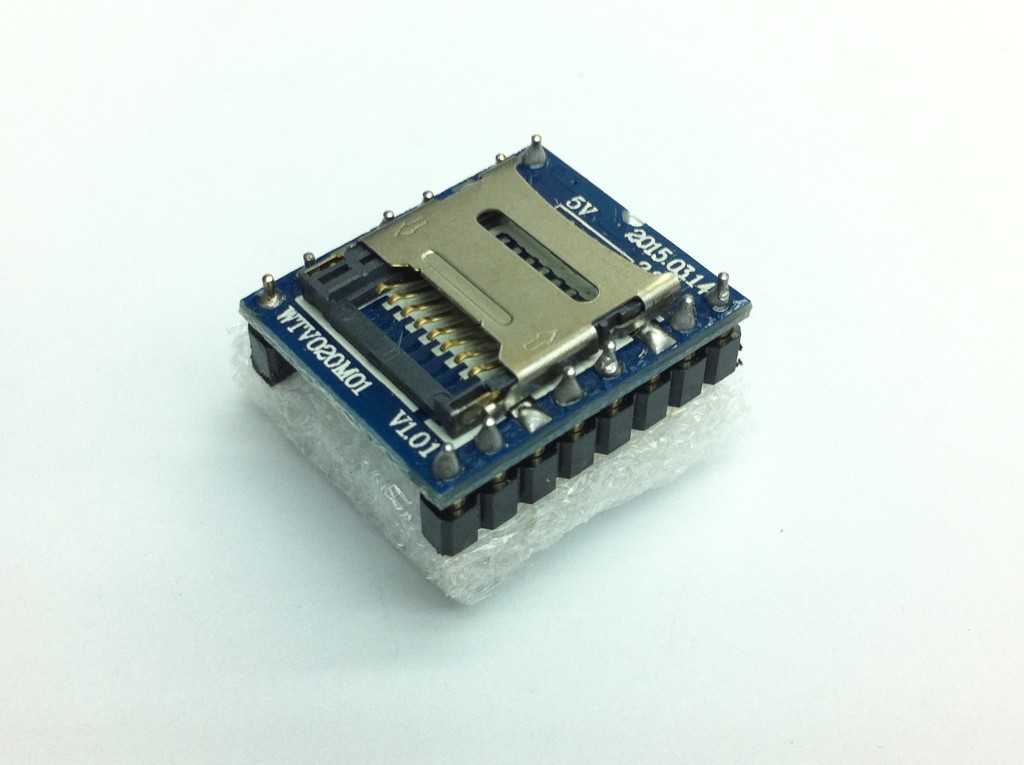

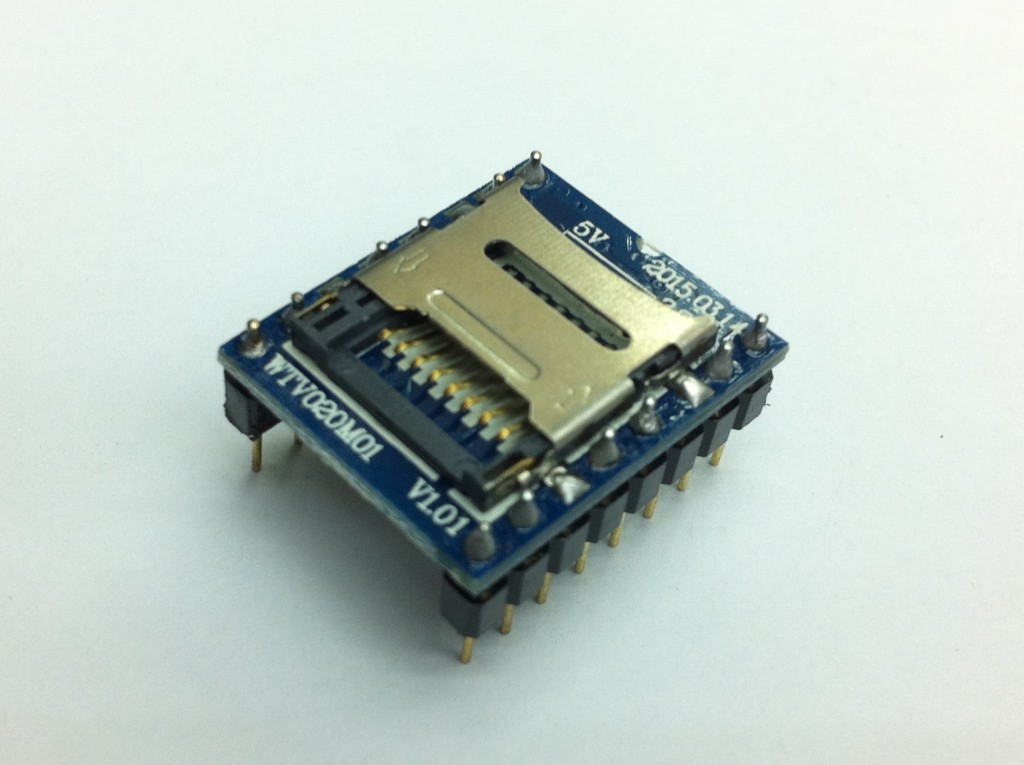

IMG_0551 IMG_0548 IMG_0549
