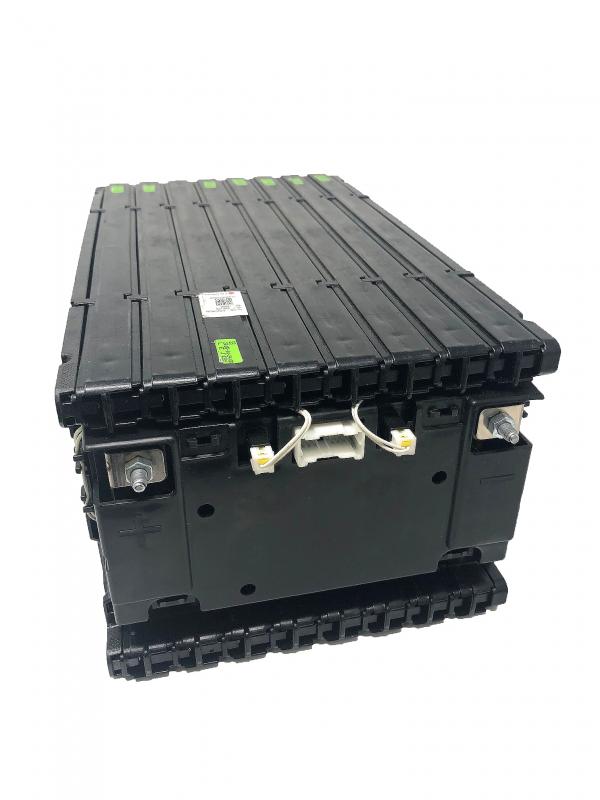

LG CHEM Lithium Ion Battery – 60.8V, 2.6kWh


The LG Chem battery modules have excellent stability based on the proprietary separator technology. With the lightweight pouch design it makes it easy to change the designs according to customers’ requirements. Each module is arranged in a 16s configuration providing 2.6kWh and rated at 200-400 amp continuos with 800amp max discharge. Due to the power density and high discharge rate these modules are a perfect fit for the Tesla Model S drive unit. A preferred configuration for a typical Model S drive unit is 2p6s for a total of 32kWh, However you can add modules in a 1p6s configuration for an additional 16kW per group.

Capacity: 2.6Kw
Height: 14.25 Inches
Width: 8.00 Inches
Length: 6.25 Inches
Weight: 38.00 Pounds
Bolt Size: M6
Voltage nominal: 3.8V/Cell, 60.8V/Module
Charge voltage cut-off: 4.2V/Cell, 67.2V/Module
Discharging cut-off: 3.3V/Cell, 52.8/Module
Maximum Discharging Current (10 sec.):800 Amps
Warranty Period: One year

Note: Batteries have special shipping requirements. Please contact us for a custom shipping quote when ordering batteries.

Additional information

Weight 17 kg
Dimensions 36.20 × 20.32 × 15.88 cm
